- Frequency5.8 GHz (48CH)
- Max Power1W
- Input9-36V
- Weight55.0g
- ConnectorRP-SMA inner hole
Key Features
- Classic 5.8 GHz 1W VTX — the proven, time-tested Aomway video transmitter trusted by FPV pilots
- 1W Stable Output Power — strong, reliable video transmission for long-range flying
- 48 Channels — wide channel selection for crowded 5.8 GHz environments
- IRC/Tramp Protocol Support — SmartAudio-compatible control with real-time power adjustment
- Wide 9-36V Input Voltage — compatible with common FPV power systems
- RP-SMA Inner Hole Connector — standard antenna interface for tool-free installation
- Compact and Lightweight — only 55.0g, 45*20*22, easy to fit on any airframe
Technical Specifications
| Parameter | Specification |
|---|---|

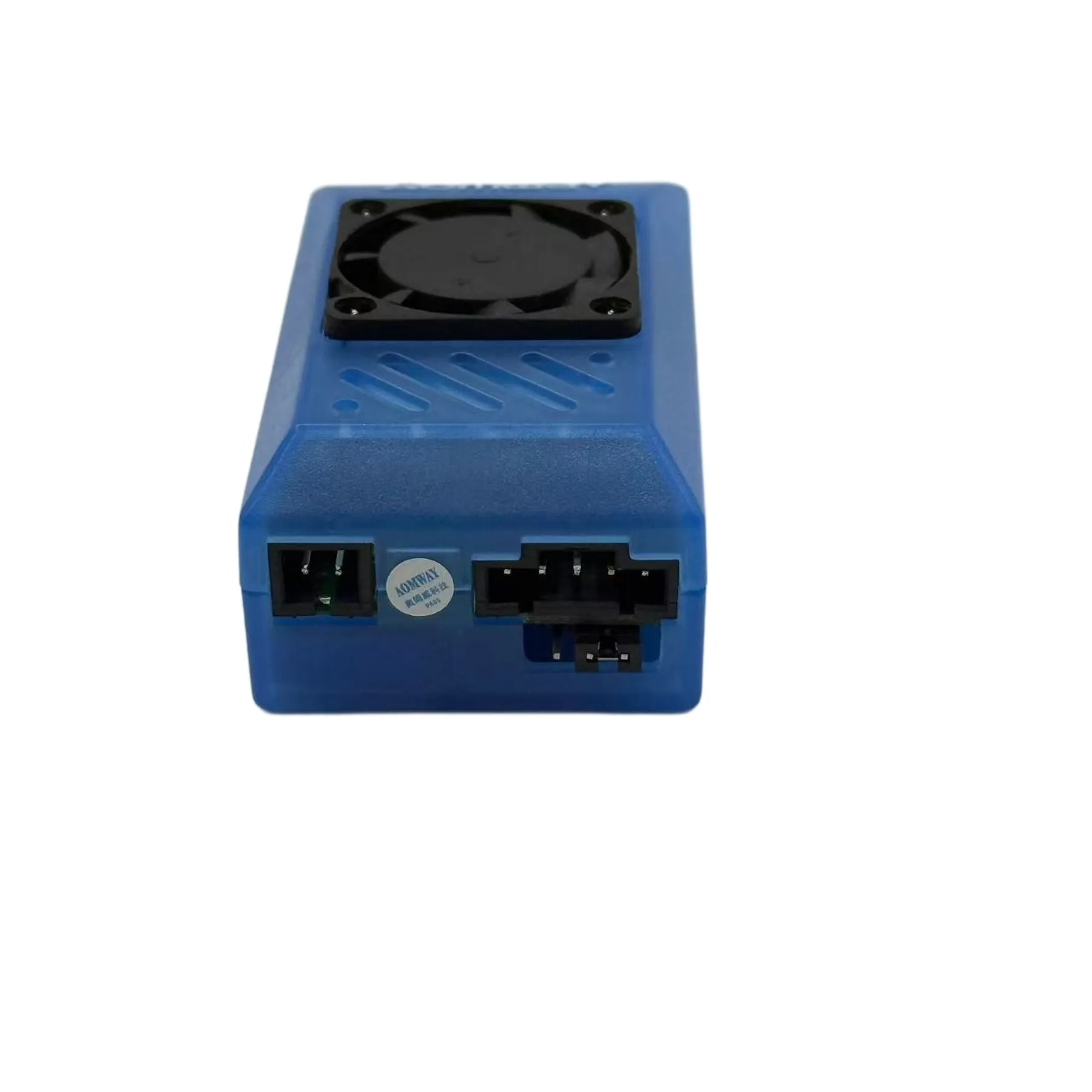

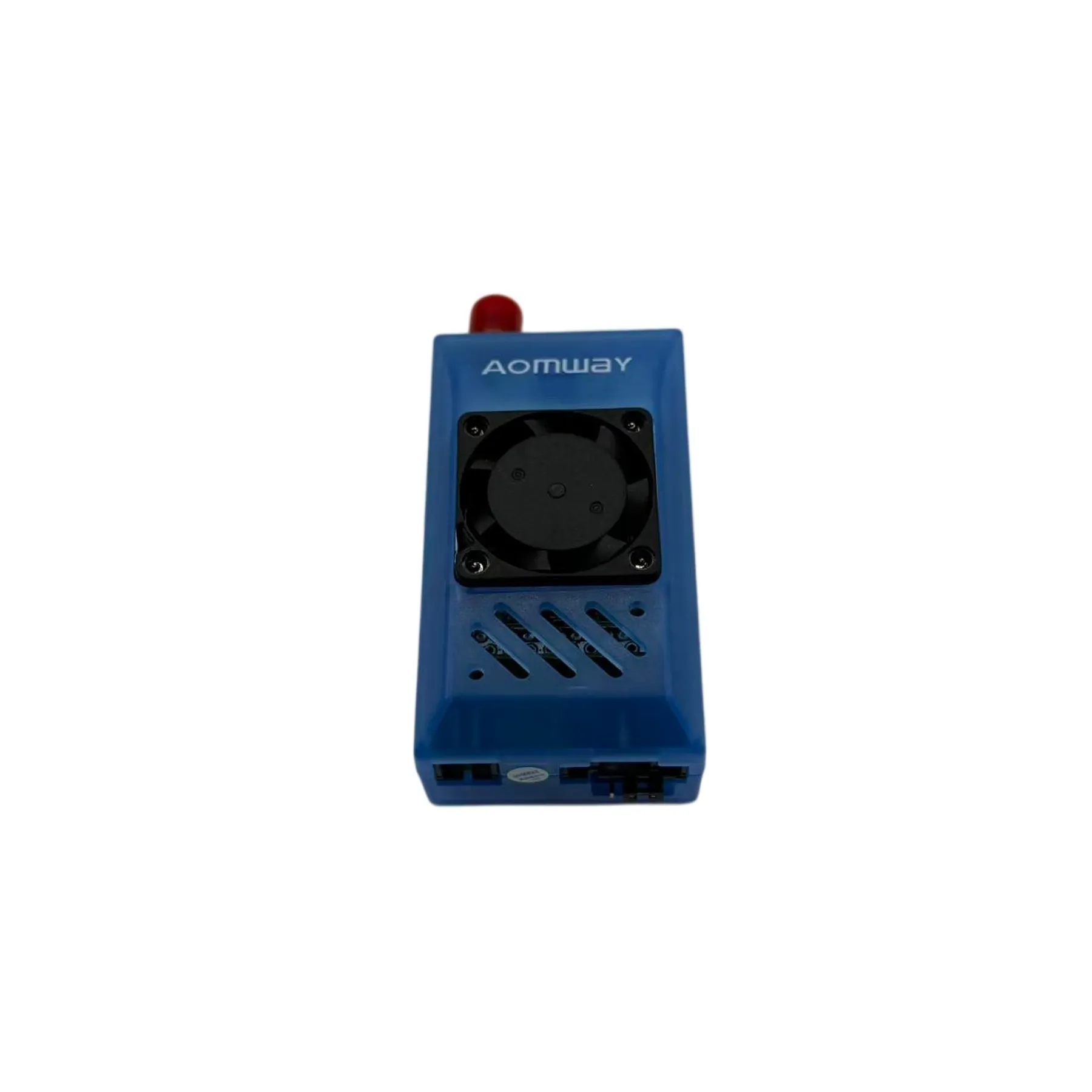

| Product Name | Aomway 1w vtx 5.8G |
| Frequency Range | 5.8 GHz (48CH) |
| Output Power | 1W |
| Channels | 48CH |
| Control Protocol | IRC/Tramp |
| Input Voltage | 9-36V |
| Antenna Connector | RP-SMA inner hole |
| Weight | 55.0g |
| Dimensions | 45*20*22 |
| SKU | Aomway 1w vtx 5.8G |
Need a dependable classic 5.8 GHz VTX? Explore the Aomway 1w vtx 5.8G from Aomway — engineered for reliable long-range operation. For inquiries, bulk pricing, or custom requirements, contact us at info@aomway.com.
Aomway has been developing and manufacturing video transmission equipment for 15 years, accumulating extensive industry experience and massive test data. We can produce video transmission devices for any frequency band from 1 to 9 GHz, with power ranging from 3W to 15W. No development fees and free samples available. For inquiries, contact us at info@aomway.com.
Frequency Plan & Pinout
Band and channel data below is taken from this unit’s own published specification table.
| Item | Value |
|---|---|
| Frequency Range | 5.8 GHz (48CH) |
| Channels | 48CH |
| Control Protocol | IRC/Tramp |
Awaiting source data: the connector pinout drawing, the per-revision button / jumper sequence for band and power selection, and the downloadable PDF datasheet are not yet published for this model. Aomway will not print a wiring diagram it has not verified — request the engineering package and we will send the signed drawing for your hardware revision.
Request Datasheet & Pinout (PDF)Read the Technical DocsRecommended Accessories
Matching the antenna and cabling to the band is what actually decides usable range. These are the parts we ship alongside this unit most often.
Aomway 5.8GHz FPV Directional Antenna 12dBi Yagi
High-gain directional antenna for the 5.8 GHz band – extends usable range well beyond a stock whip.
View product →Aomway Commander V2 FPV Goggles
Commander V2 goggles – the ground-station display we build and support ourselves.
View product →Also required for a complete install: a coax extension / antenna pigtail cut for this band, and an LC filter module for noisy power rails. Both are supplied on request — email [email protected] with your airframe and we will spec the correct length and connector.
