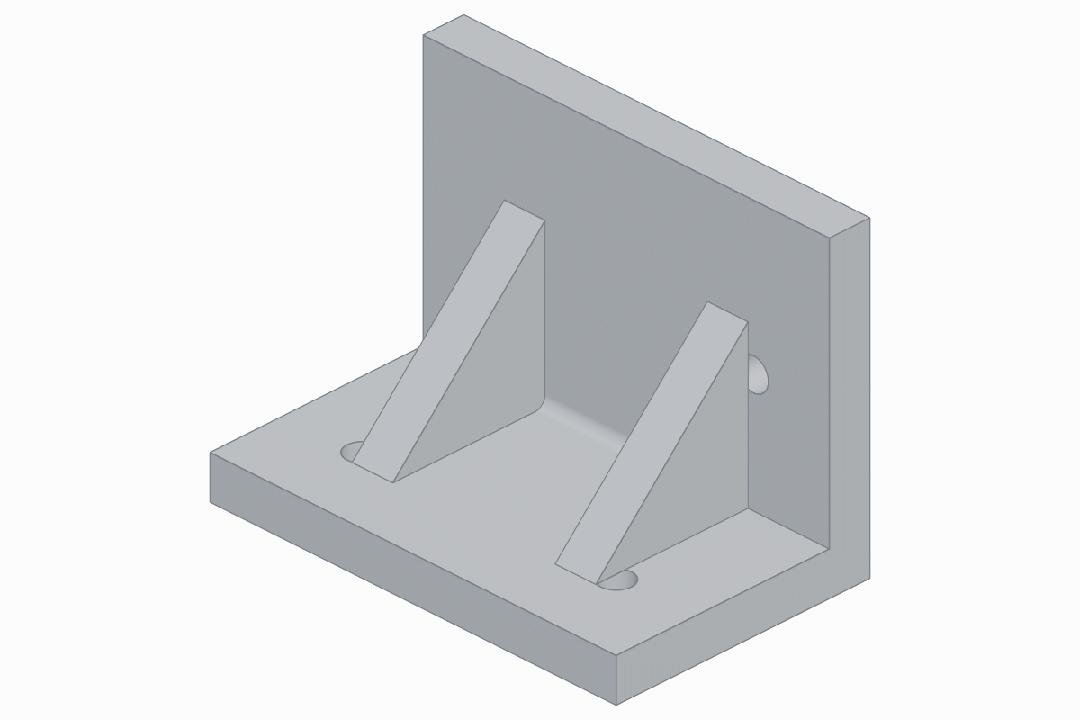

Normally you’d sketch a bracket with four mounting holes in SolidWorks — sketch plane, extrude, hole wizard, chamfer, eight panel switches, twenty clicks. Now you type a sentence in Chinese into Claude Code, and ten seconds later a STEP file appears in your directory with a 3D preview popping open in your browser automatically.
This is text-to-cad — an open-source Claude Code skill that turns plain-language descriptions into solid geometry, robot description files, slicer-ready gcode, and laser-cut drawings. At 9.3k GitHub stars and climbing, it’s one of the fastest-growing agent skills in the CAD/robotics ecosystem.
What It Can Do
CAD Modeling: Natural language or image input → the agent invokes a local OpenCascade kernel to generate solid geometry. Primary output is STEP, with optional export to STL, 3MF, and GLB. A built-in CAD Viewer skill opens a 3D preview in your browser automatically, with full rotation and zoom.
Slicing & Printing: A G-code skill calls your locally installed slicer CLI (PrusaSlicer, OrcaSlicer) to convert STL files into .gcode with printer profiles. A Bambu Labs skill pushes verified gcode to your LAN-connected Bambu printer, supporting dry-run and start-print workflows.
Robot Description Files: A URDF skill generates complete robot descriptions with links, joints, limits, inertials, and meshes. An SRDF skill supplements MoveIt planning groups, end-effectors, and collision rules. An SDF skill generates simulation world files with physics engines, sensors, and light sources.
2D Output & Standard Parts: A DXF skill generates laser-cutting-ready drawings from 3D geometry or Python source code. A step.parts skill queries a library of off-the-shelf STEP components — screws, bearings, motors, connectors.
Installation & Usage
Requirements: Node.js 18+ on macOS, Linux, or Windows. No API key. No paid account. All geometry computation happens locally.
Recommended one-liner via Skills CLI:
npx skills install earthtojake/text-to-cadClaude Code plugin path:
claude plugin marketplace add earthtojake/text-to-cad
claude plugin install cad@text-to-cadCodex users:
codex plugin marketplace add earthtojake/text-to-cad
codex plugin add cad@text-to-cadRestart your agent after installation for the new skill to appear.
Out-of-the-box capabilities: CAD modeling, CAD Viewer preview, URDF/SRDF/SDF generation, DXF export, step.parts standard component lookup. Third-party-dependent capabilities: G-code slicing requires a locally installed slicer CLI; Bambu printing requires a LAN-accessible supported printer model; SendCutSend requires a platform account.
What It Can’t Do (Yet)
Try asking it to generate an ergonomic mouse shell — “top surface with G2-continuous curvature transitions, concave side grip contours.” The agent runs for forty seconds, and the STEP preview shows visible facet edges at the curvature transitions, not true G2 smoothness. Freeform surfaces like these still require manual work in Fusion 360 or similar surfacing tools.
Specific limitations:
- Rule-based solids (blocks, holes, ribs, flanges, shafts, shells) are solid. Freeform surfaces and organic shapes are unstable.
- Output is single-part geometry only — no assembly constraints or motion simulation.
- All generated results must be dimensionally verified by a human before use as production drawings.
- The Implicit CAD skill is still marked Experimental — not suitable for engineering delivery.
How It Compares to Alternatives
| Dimension | text-to-cad | Zoo.dev | AdamCAD |
|---|---|---|---|
| Positioning | Agent local skill library | Cloud CAD platform + API | Standalone web app |
| Primary input | Natural language / images | Natural language / API | Natural language / images |
| Output formats | STEP / STL / 3MF / GLB | STEP / GLB | STEP / STL |
| Runs locally | ✓ | ✗ | ✗ |
| Open source | ✓ MIT | ✗ | △ Partially |
| Cost | Free | $0.50/min+ | $9.99/month |
| Robot description files | ✓ URDF/SRDF/SDF | ✗ | ✗ |
| Slicing & printing | ✓ Built-in | ✗ | ✗ |
| Complex surfaces | △ Limited | ✓ | △ Limited |
Decision guide: If you’re already using Claude Code or Codex and need quick part prototypes or URDF skeletons, choose text-to-cad — zero cost, fully local. If you need cloud collaboration or complex surfacing, Zoo.dev is the better fit. If you just need the occasional one-off part without installing an environment, AdamCAD runs in your browser.
Final Thoughts
The core value of text-to-cad isn’t “AI can do 3D modeling” — OpenCascade and Build123d have existed for years. What it does is collapse modeling, previewing, slicing, printing, and robot description generation — previously scattered across four or five separate applications — into a continuous sequence of instructions inside an agent conversation.
It’s the shortest path from idea to inspectable geometry. Tolerance fit, assembly verification, and manufacturability assessment? Those are still on you.
