- Frequency3.3 GHz
- ConnectorSMA / RP-SMA
Key Features
- 3.3 GHz Optimized Band — tuned specifically for 3.3 GHz video and control links
- 4-Leaf Cloverleaf Helical Design — right-hand circular polarization (RHCP) for stable, multipath-resistant reception
- 4 dBi Gain — extended coverage and a stronger link at range
- VSWR Below 1.5 — low reflection and efficient power transfer
- 50 Ohm Impedance — standard match for FPV transmitters and receivers
- 360° Radiation Pattern — concentrates radiated energy in a circular space for consistent link quality
- Compact and Lightweight — easy to mount on any airframe or ground station
Technical Specifications
| Parameter | Specification |
|---|---|

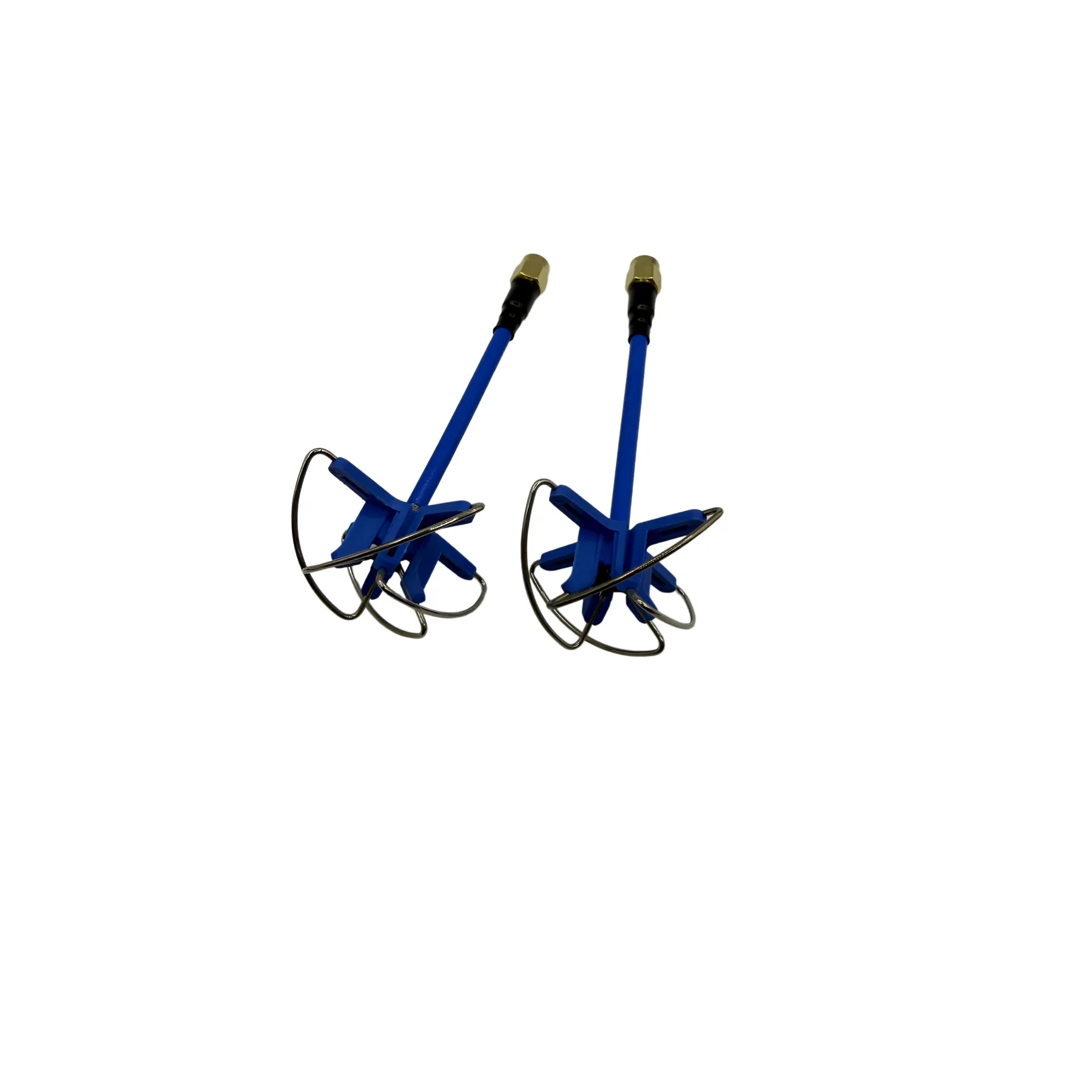

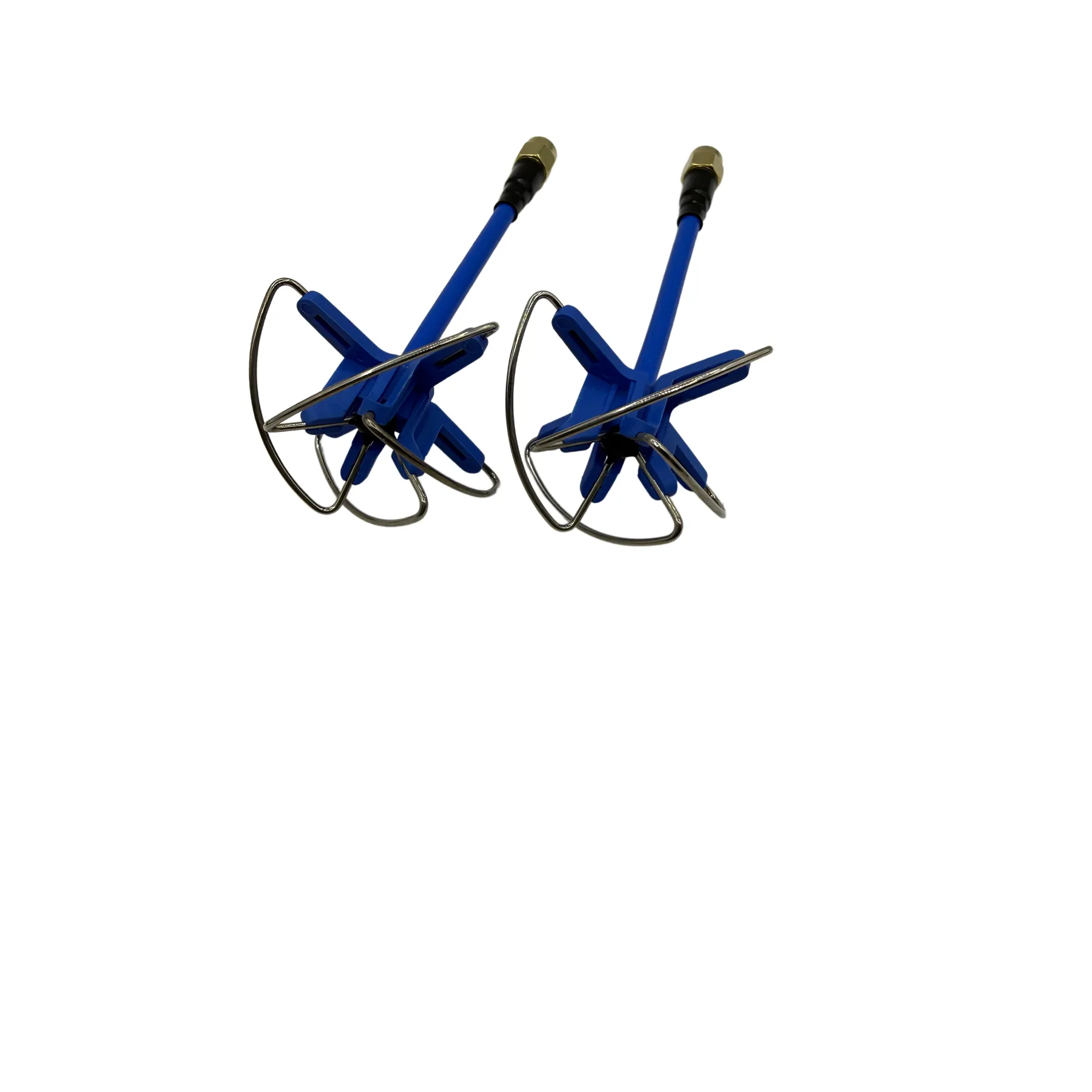

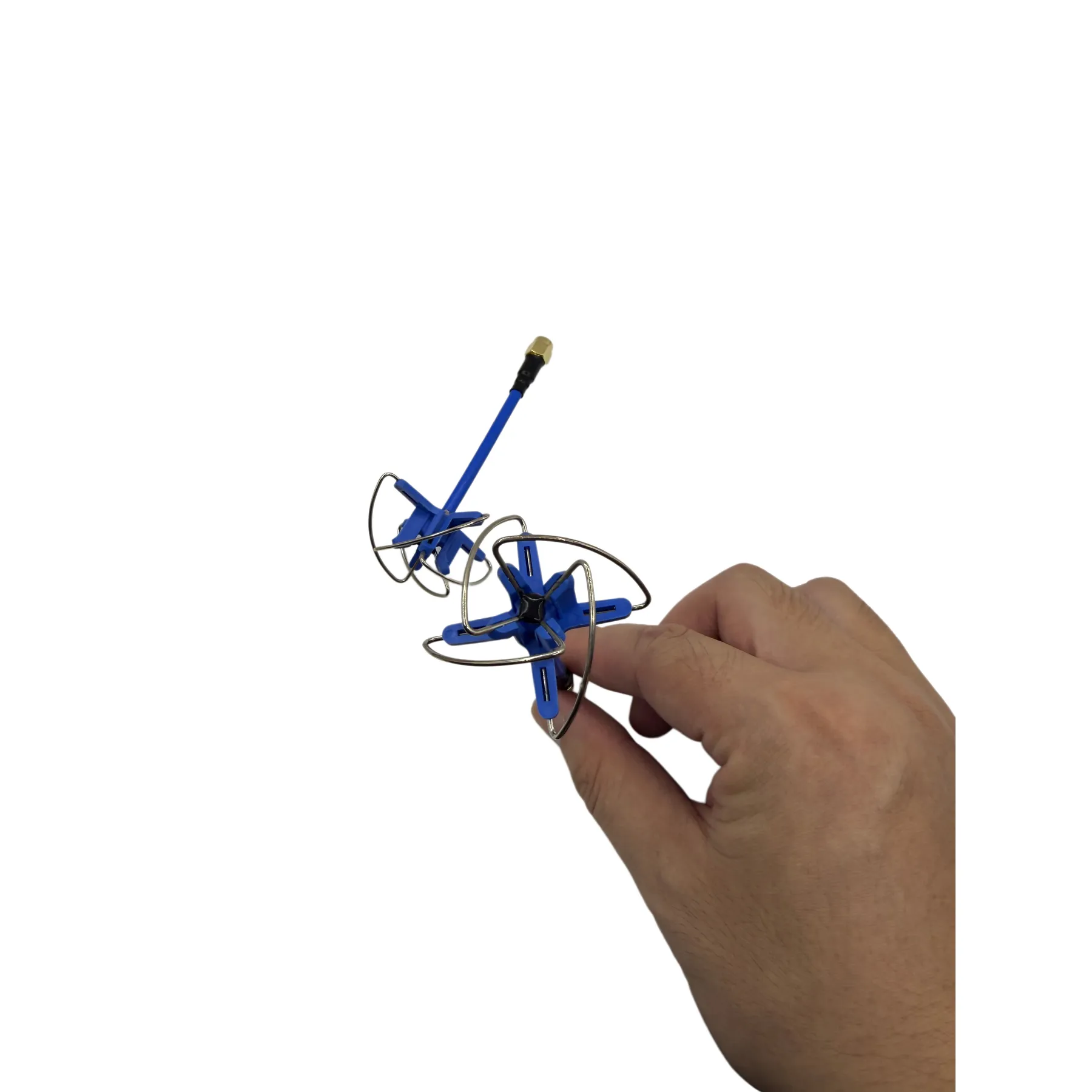

| Product Name | Aomway 3.3G RHCP 4dbi antenna |
| Frequency Range | 3.3 GHz |
| Antenna Type | 4-leaf cloverleaf helical |
| Polarization | RHCP (right-hand circular) |
| Gain | 4 dBi |
| VSWR | < 1.5 |
| Impedance | 50 Ohm |
| Radiation Pattern | 360° |
| Connector | SMA / RP-SMA |
| SKU | Aomway 3.3G RHCP 4dbi antenna |
Need a clean 3.3 GHz link? Explore the Aomway 3.3G RHCP 4dbi antenna from Aomway — engineered for reliable long-range operation. For inquiries, bulk pricing, or custom requirements, contact us at info@aomway.com.
Frequency Plan & Pinout
Band and channel data below is taken from this unit’s own published specification table.
| Item | Value |
|---|---|
| Frequency Range | 3.3 GHz |
Awaiting source data: the connector pinout drawing, the per-revision button / jumper sequence for band and power selection, and the downloadable PDF datasheet are not yet published for this model. Aomway will not print a wiring diagram it has not verified — request the engineering package and we will send the signed drawing for your hardware revision.
Request Datasheet & Pinout (PDF)Read the Technical DocsRecommended Accessories
Matching the antenna and cabling to the band is what actually decides usable range. These are the parts we ship alongside this unit most often.
Aomway 3.3G RHCP 4dBi Antenna
Circularly-polarised antenna matched to the 3.3 GHz band; reduces multipath on long-range flights.
View product →Aomway Commander V2 FPV Goggles
Commander V2 goggles – the ground-station display we build and support ourselves.
View product →Also required for a complete install: a coax extension / antenna pigtail cut for this band, and an LC filter module for noisy power rails. Both are supplied on request — email [email protected] with your airframe and we will spec the correct length and connector.
