- Frequency7 – 8.7 GHz
- ConnectorSMA / RP-SMA
Key Features
- Wide 7-8.7 GHz Band — covers the 7 GHz to 8.7 GHz range for long-range, low-interference FPV links
- RHCP Circular Polarization — right-hand circular polarization for stable reception
- 4 dBi Gain — balanced coverage for omni-directional flying
- VSWR Below 1.5 — low reflection and efficient power transfer
- 50 Ohm Impedance — standard match for FPV transmitters and receivers
- Slim Sleeve Form Factor — compact cylindrical body with a gold-plated connector
Technical Specifications
| Parameter | Specification |
|---|---|

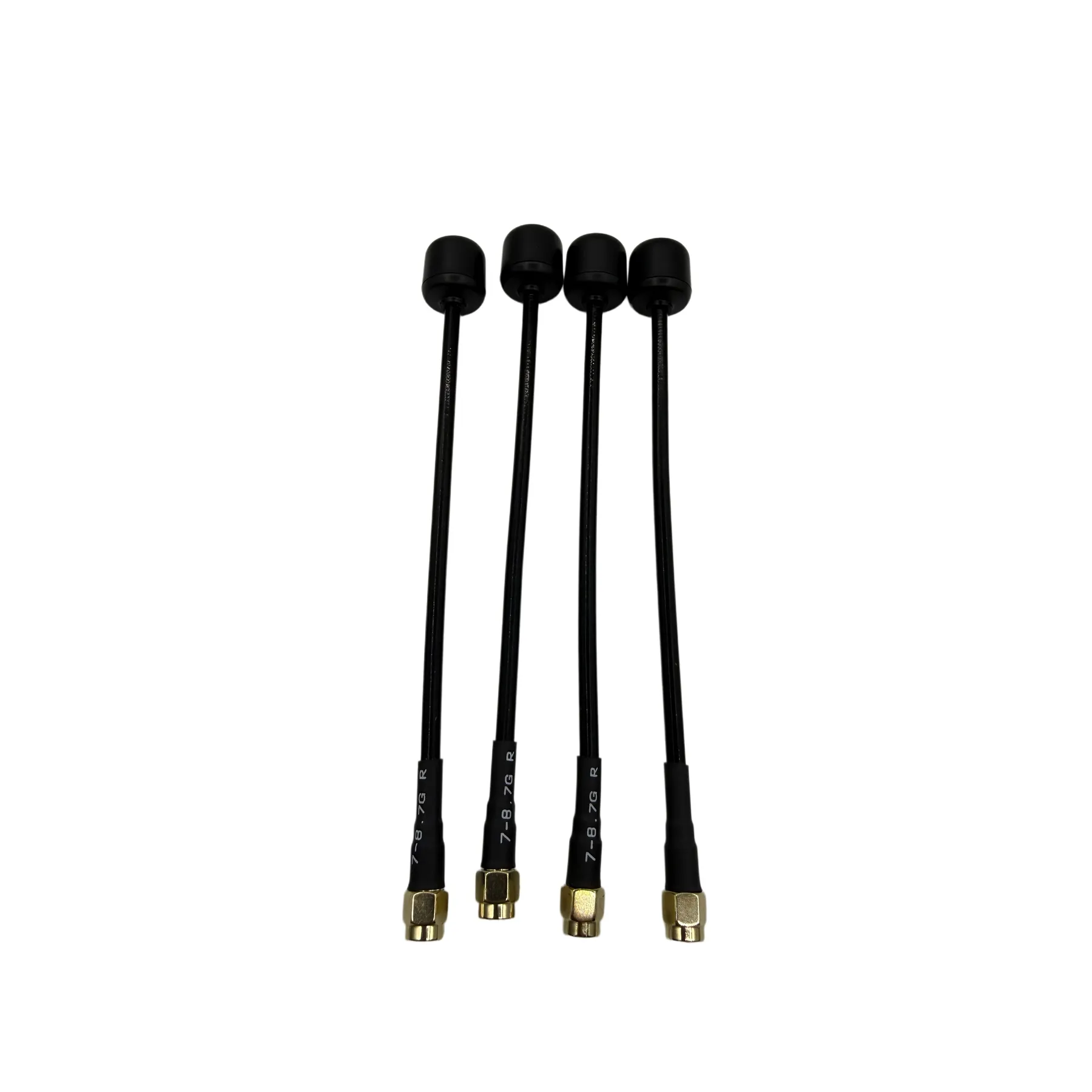

| Product Name | Aomway 7G-8.7G RHCP 4dbi antenna |
| Frequency Range | 7 – 8.7 GHz |
| Polarization | RHCP (right-hand circular) |
| Gain | 4 dBi |
| VSWR | < 1.5 |
| Impedance | 50 Ohm |
| Connector | SMA / RP-SMA |
| SKU | Aomway 7G-8.7G RHCP 4dbi antenna |
Upgrading to the 7 GHz band? Explore the Aomway 7G-8.7G RHCP 4dbi antenna from Aomway — engineered for reliable long-range operation. For inquiries, bulk pricing, or custom requirements, contact us at info@aomway.com.
Frequency Plan & Pinout
Band and channel data below is taken from this unit’s own published specification table.
| Item | Value |
|---|---|
| Frequency Range | 7 – 8.7 GHz |
Awaiting source data: the connector pinout drawing, the per-revision button / jumper sequence for band and power selection, and the downloadable PDF datasheet are not yet published for this model. Aomway will not print a wiring diagram it has not verified — request the engineering package and we will send the signed drawing for your hardware revision.
Request Datasheet & Pinout (PDF)Read the Technical DocsRecommended Accessories
Matching the antenna and cabling to the band is what actually decides usable range. These are the parts we ship alongside this unit most often.
Aomway 7G-8.7G RHCP 4dBi Antenna
RHCP antenna covering the 7-8.7 GHz band for high-band long-range links.
View product →Aomway 7G-9G RHCP 13dBi Patch Antenna
13 dBi patch antenna for the 7-9 GHz band – the highest-gain option for ground-station use.
View product →Aomway Commander V2 FPV Goggles
Commander V2 goggles – the ground-station display we build and support ourselves.
View product →Also required for a complete install: a coax extension / antenna pigtail cut for this band, and an LC filter module for noisy power rails. Both are supplied on request — email [email protected] with your airframe and we will spec the correct length and connector.
