- Frequency7 – 9 GHz
- ConnectorSMA / RP-SMA
Key Features
- Full 7-9 GHz Coverage — wide 7 GHz to 9 GHz band for long-range high-band FPV
- 13 dBi High-Gain Panel — directional patch design extends range and link margin
- RHCP Circular Polarization — right-hand circular polarization for stable reception
- VSWR Below 1.5 — low reflection and efficient power transfer
- 50 Ohm Impedance — standard match for FPV transmitters and receivers
- Low-Profile Square Panel — easy to mount on goggles, ground stations or tracking rigs
Technical Specifications
| Parameter | Specification |
|---|---|

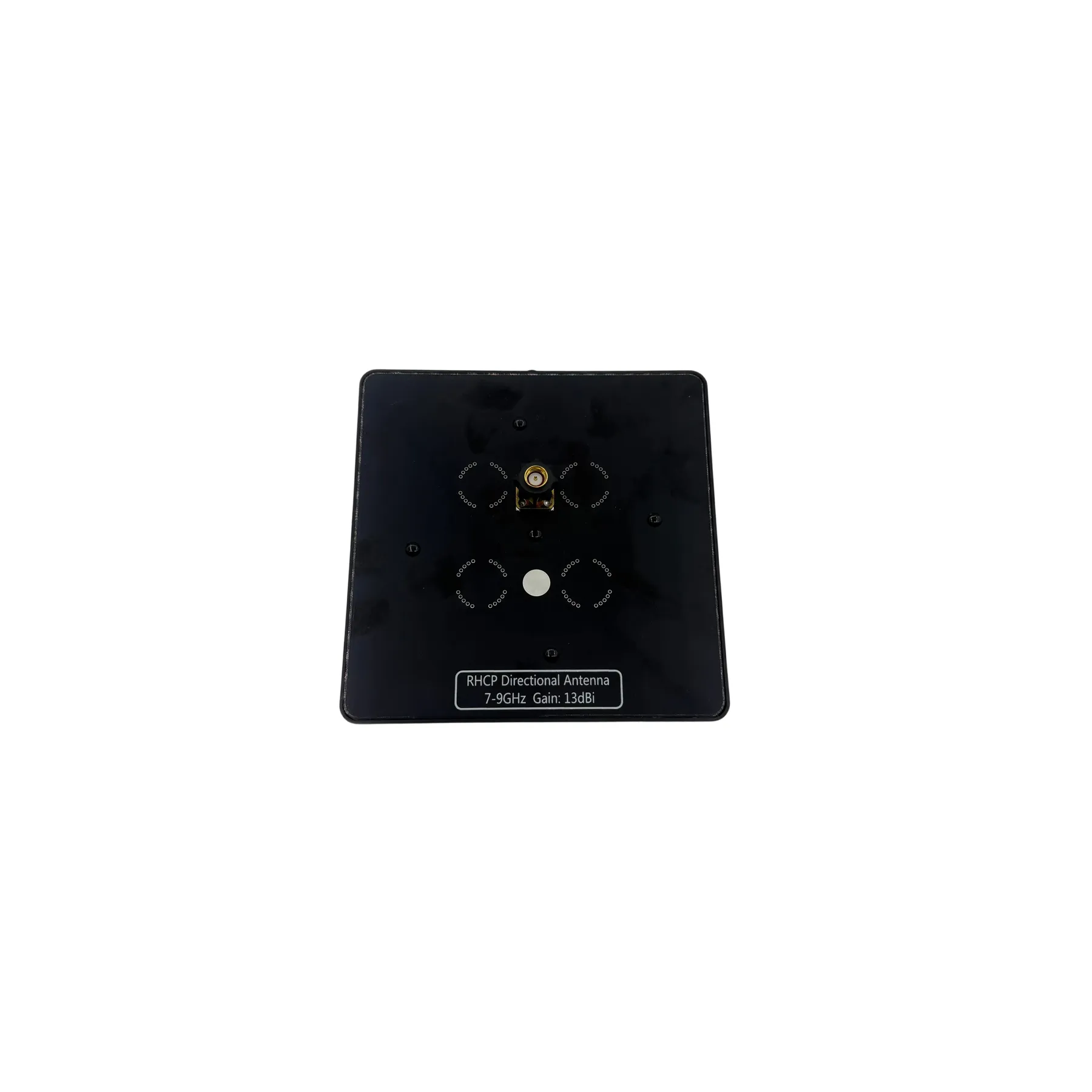

| Product Name | Aomway 7G-9G RHCP 13dbi patch antenna |
| Frequency Range | 7 – 9 GHz |
| Antenna Type | Directional patch panel |
| Polarization | RHCP (right-hand circular) |
| Gain | 13 dBi |
| VSWR | < 1.5 |
| Impedance | 50 Ohm |
| Connector | SMA / RP-SMA |
| SKU | Aomway 7G-9G RHCP 13dbi patch antenna |
Going the distance on 7-9 GHz? Explore the Aomway 7G-9G RHCP 13dbi patch antenna from Aomway — engineered for reliable long-range operation. For inquiries, bulk pricing, or custom requirements, contact us at info@aomway.com.
Frequency Plan & Pinout
Band and channel data below is taken from this unit’s own published specification table.
| Item | Value |
|---|---|
| Frequency Range | 7 – 9 GHz |
Awaiting source data: the connector pinout drawing, the per-revision button / jumper sequence for band and power selection, and the downloadable PDF datasheet are not yet published for this model. Aomway will not print a wiring diagram it has not verified — request the engineering package and we will send the signed drawing for your hardware revision.
Request Datasheet & Pinout (PDF)Read the Technical DocsRecommended Accessories
Matching the antenna and cabling to the band is what actually decides usable range. These are the parts we ship alongside this unit most often.
